Vantra Trailer TH31
The first special trailer tire of exceptional durability and stability
-
Regional Haul
Durable & long-lasting even under heavy loads
/m_Concept%20KV(export).jpg)
Durability

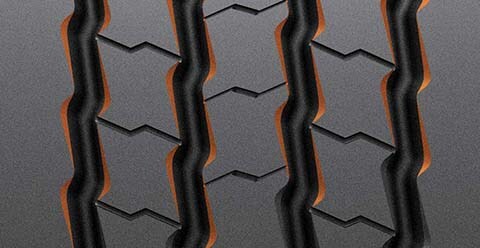

Main zigzag groove
Provides excellent traction and water drainage under various road conditions. Asymmetric groove helps eject stones.
/new-asset/Contents_B_1-1(export).jpg)
/new-asset/Contents_B_1-2(export).jpg)

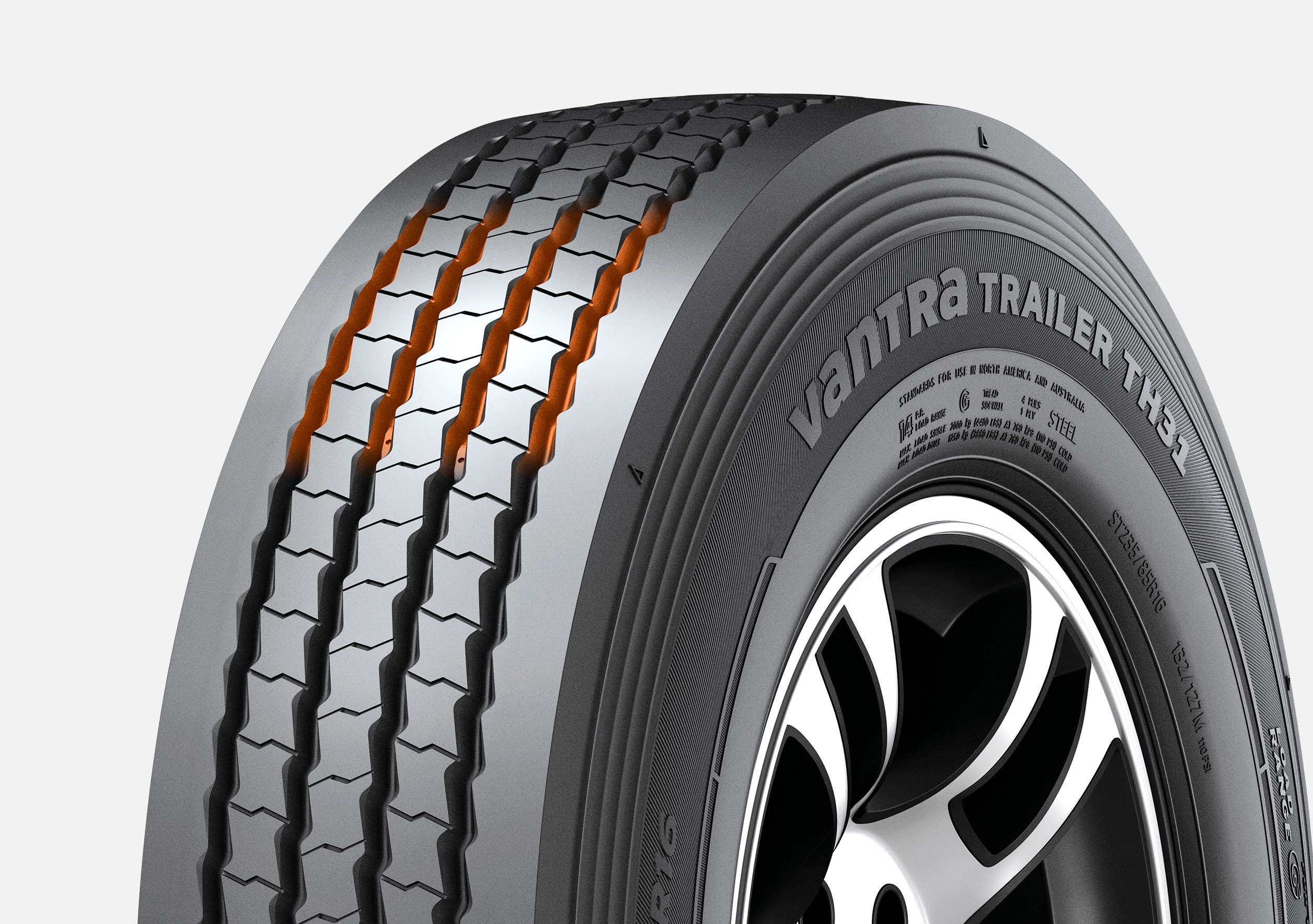

Groove slant design
Slanted groove design helps to prevent chuncking.
/new-asset/Contents_B_2-1(export).jpg)
/new-asset/m_Contents_B_KV-2(export).jpg)
Durability

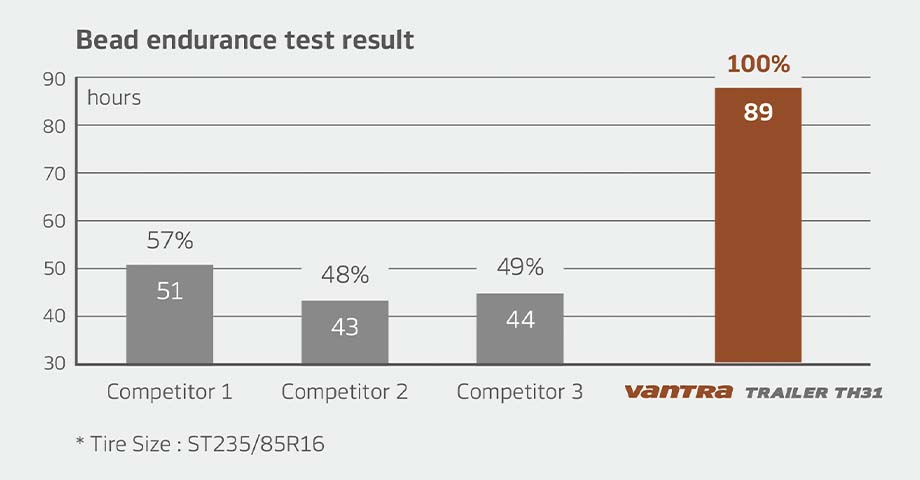

Performance test result
/new-asset/Contents_G_1-5(export).jpg)
/new-asset/Contents_G_1-4(export).jpg)

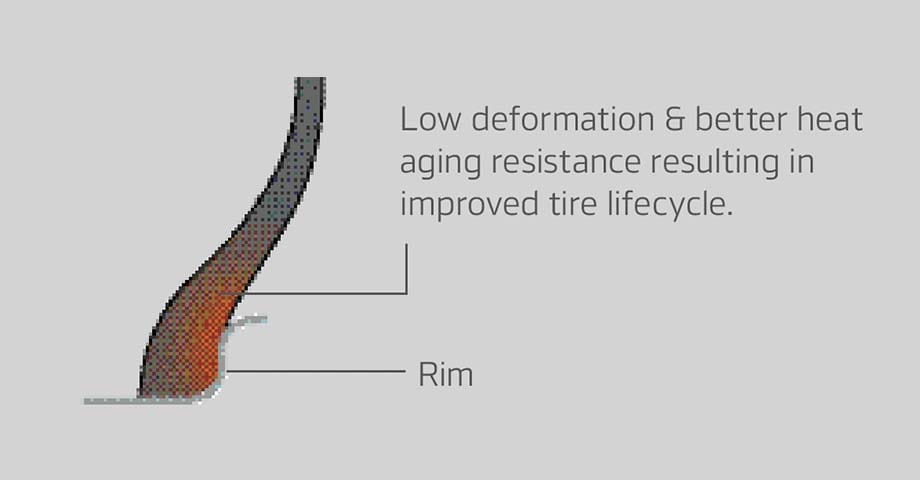

Improved Bead
Improved bead structure enabled minimum bead mobility for enhancing durability
-

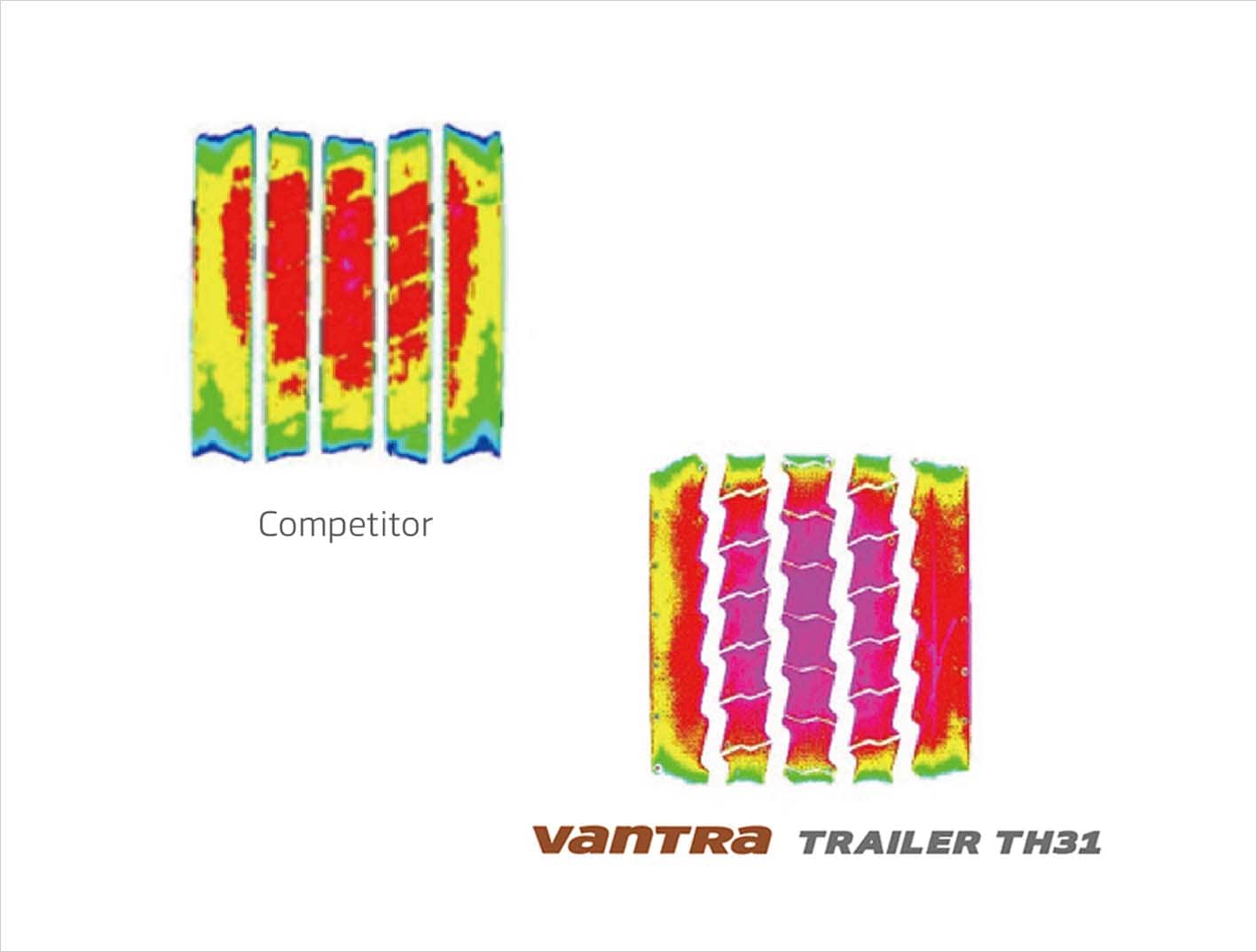

Optimized footprint
Results in more evenly distributed stress, leads to longer tread life and uniform wear under heavy loads.
/Contents_F_1-1(export).jpg)
Results in more evenly distributed stress, leads to longer tread life and uniform wear under heavy loads.
-

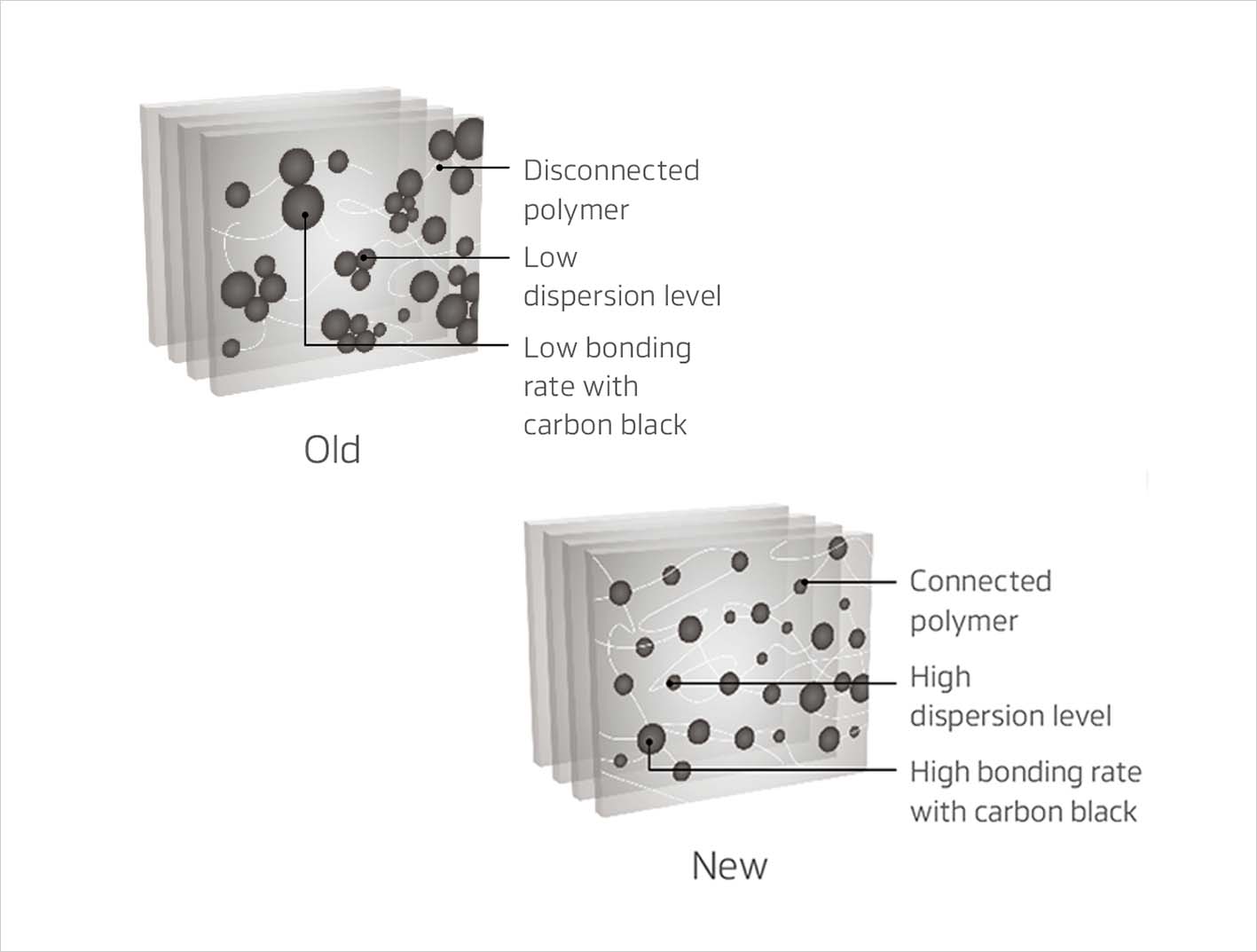

New compound mixing system for enhancing longer life
The new mixing system, Innovation Mixing System, (IMS), minimizes disconnection of polymer chains and oxidation.
/Contents_F_1-2(export).jpg)
The new mixing system, Innovation Mixing System, (IMS), minimizes disconnection of polymer chains and oxidation.
-

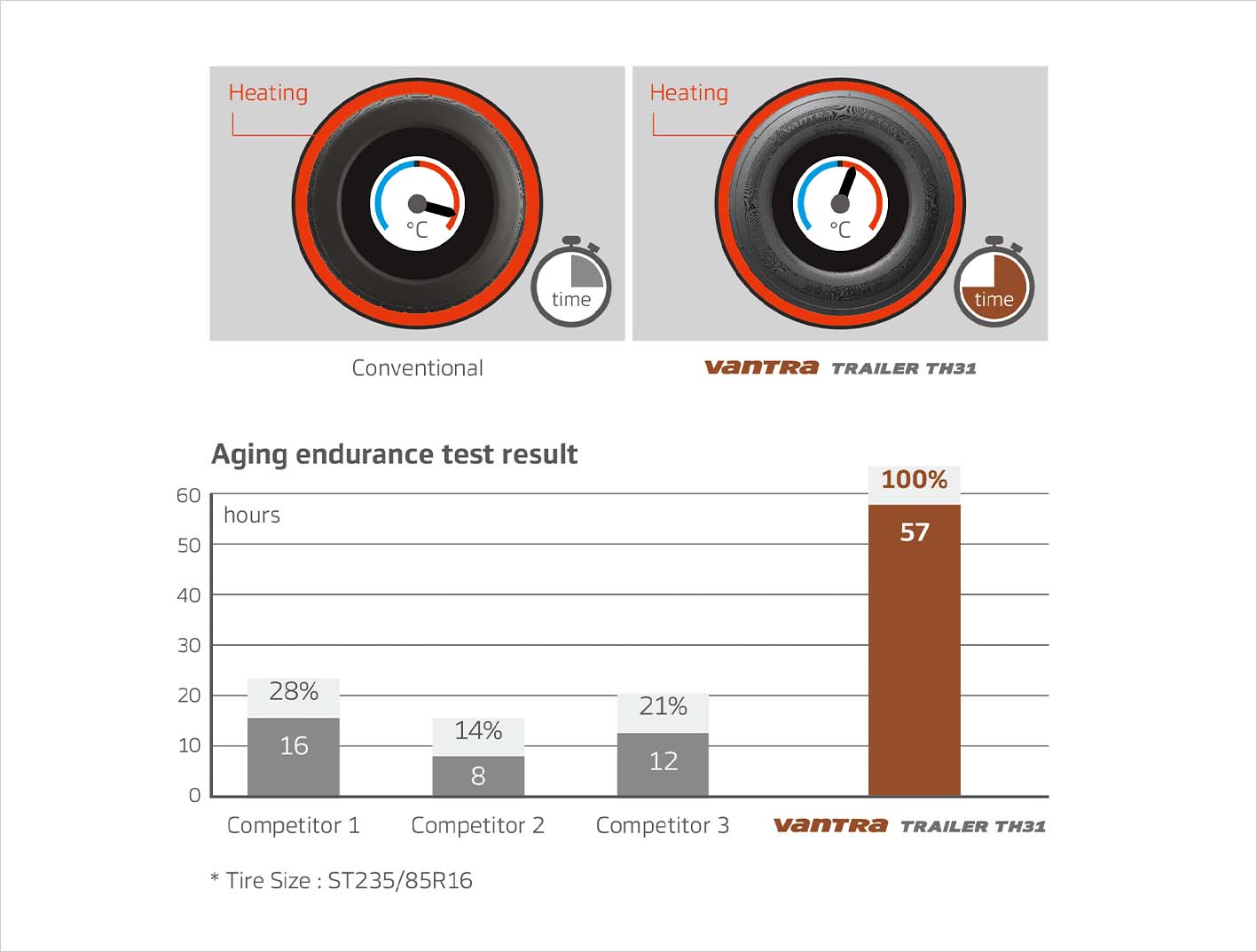

Aging durability
New compound mixing system and steel carcass structure enabled longer life.
/Contents_F_1-3(export)%20(2).jpg)
New compound mixing system and steel carcass structure enabled longer life.
-
Spec
- 16”
- 17.5”
- 22.5”
-
215/75R17.5
- Material Code 3003744
- TT/TL L
- Ply Rating 16
- Measuring Rim 6.00X17.5
- Section Width(inch) 8.4
- Tread Width(inch) 7.3
- Tread Depth(32nds) 15
- Static Loaded Radius(inch) 14.2
- Overall Diameter(inch) 30.5
- Tire Weight(lbs.) 63
- M+S Y
- 3PMSF Y
-
235/75R17.5
- Material Code 3003745
- TT/TL L
- Ply Rating 18
- Measuring Rim 6.75X17.5
- Section Width(inch) 9.4
- Tread Width(inch) 8.6
- Tread Depth(32nds) 16
- Static Loaded Radius(inch) 14.4
- Overall Diameter(inch) 31.5
- Tire Weight(lbs.) 71
- M+S Y
- 3PMSF Y
-
245/70R17.5
- Material Code 3003746
- TT/TL L
- Ply Rating 18
- Measuring Rim 7.5X17.5
- Section Width(inch) 9.8
- Tread Width(inch) 8.6
- Tread Depth(32nds) 16
- Static Loaded Radius(inch) 14.5
- Overall Diameter(inch) 31.5
- Tire Weight(lbs.) 71
- M+S Y
- 3PMSF Y
-
255/70R22.5
- Material Code 3003528
- TT/TL L
- Ply Rating 16
- Measuring Rim 7.5X22.5
- Section Width(inch) 9.8
- Tread Width(inch) 8.0
- Tread Depth(32nds) 17
- Static Loaded Radius(inch) 17.1
- Overall Diameter(inch) 36.6
- Tire Weight(lbs.) 91
- M+S Y
- 3PMSF N
-
750R16
- Material Code 3003747
- TT/TL L
- Ply Rating 14
- Measuring Rim 6.00X16
- Section Width(inch) 8.9
- Tread Width(inch) 5.9
- Tread Depth(32nds) 15
- Static Loaded Radius(inch) 14.9
- Overall Diameter(inch) 31.8
- Tire Weight(lbs.) 56
- M+S Y
- 3PMSF N
-
ST225/90R16
- Material Code 3003860
- TT/TL L
- Ply Rating 14
- Measuring Rim 6.0X16
- Section Width(inch) 8.7
- Tread Width(inch) 6.2
- Tread Depth(32nds) 12
- Static Loaded Radius(inch) 14.7
- Overall Diameter(inch) 31.8
- Tire Weight(lbs.) 62
- M+S N
- 3PMSF N
-
ST235/80R16
- Material Code 3003760
- TT/TL L
- Ply Rating 14
- Measuring Rim 6.5X16
- Section Width(inch) 9.2
- Tread Width(inch) 7.1
- Tread Depth(32nds) 12
- Static Loaded Radius(inch) 14.3
- Overall Diameter(inch) 30.8
- Tire Weight(lbs.) 59
- M+S N
- 3PMSF N
-
ST235/80R16
- Material Code 3003859
- TT/TL L
- Ply Rating 14
- Measuring Rim 6.5X16
- Section Width(inch) 9.2
- Tread Width(inch) 7.1
- Tread Depth(32nds) 12
- Static Loaded Radius(inch) 14.3
- Overall Diameter(inch) 30.8
- Tire Weight(lbs.) 62
- M+S N
- 3PMSF N
-
ST235/85R16
- Material Code 3003858
- TT/TL L
- Ply Rating 14
- Measuring Rim 6.5X16
- Section Width(inch) 9.3
- Tread Width(inch) 7.1
- Tread Depth(32nds) 12
- Static Loaded Radius(inch) 14.7
- Overall Diameter(inch) 31.6
- Tire Weight(lbs.) 64
- M+S N
- 3PMSF N
-
ST235/85R16
- Material Code 3003734
- TT/TL L
- Ply Rating 14
- Measuring Rim 6.5X16
- Section Width(inch) 9.3
- Tread Width(inch) 7.1
- Tread Depth(32nds) 12
- Static Loaded Radius(inch) 14.6
- Overall Diameter(inch) 31.6
- Tire Weight(lbs.) 60
- M+S N
- 3PMSF N
