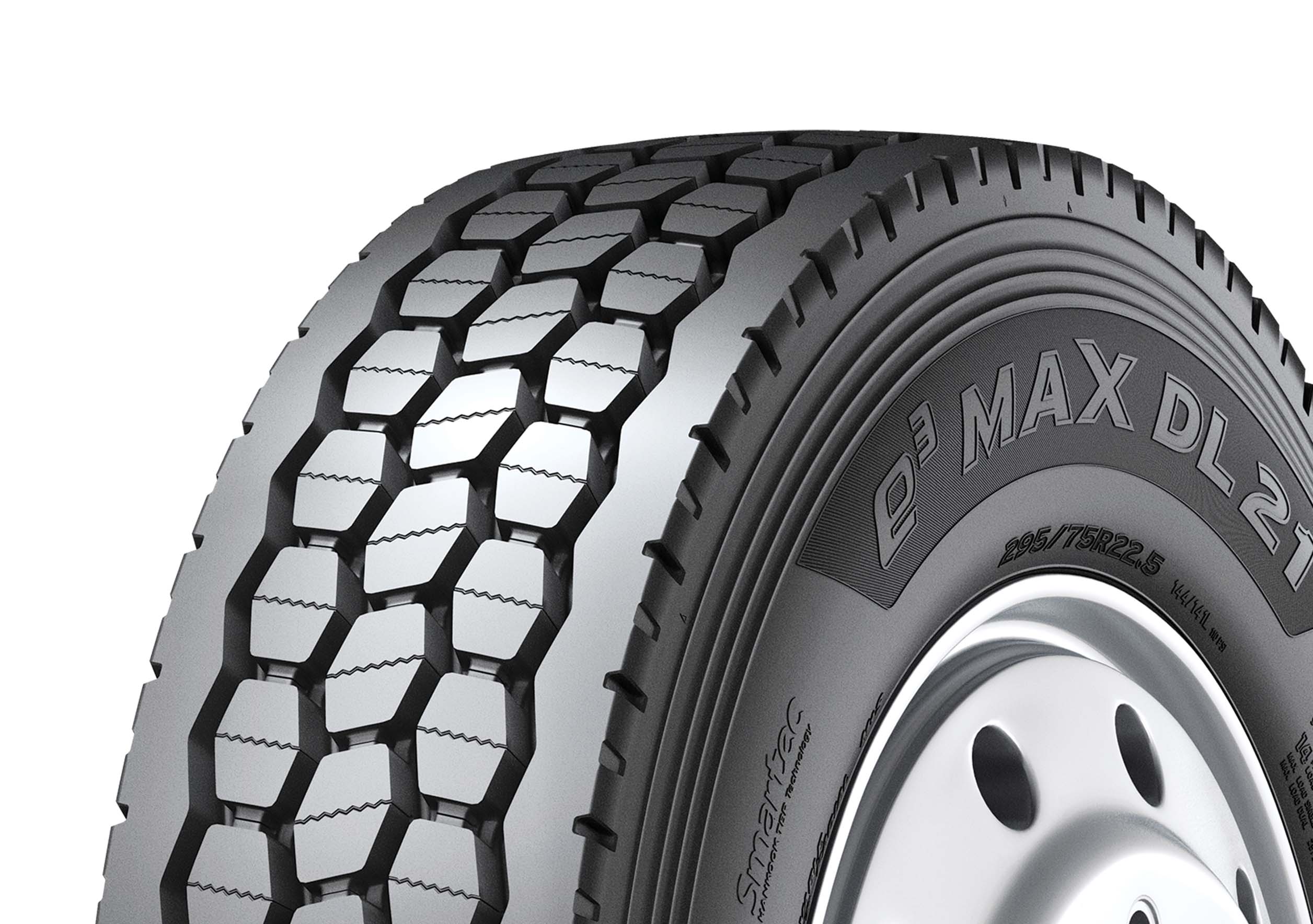

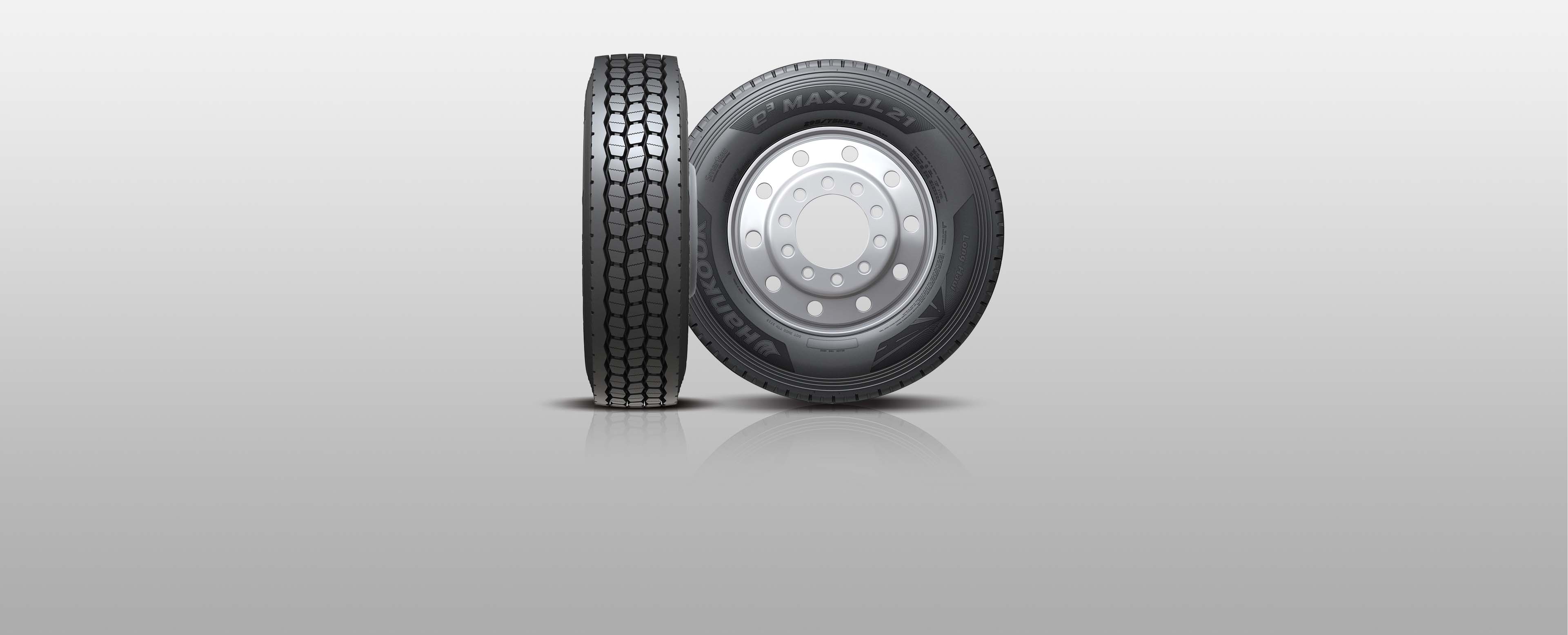

e3 Max DL21

Long haul drive tire with long mileage and fuel efficiency

M+S Smart Way Extended Warranty

Application
  • Long Haul
Tractor/Trailer Recommended
Where to Buy
Where to Buy 0
0Recently viewed products

Long Haul Drive Tire with Long Mileage and Fuel Efficiency

Hankook Tire & Technology-Tires-Smart-Smart Max-DL21-Long Haul Drive Tire with Long Mileage and Fuel Efficiency

High mileage, fuel efficiency and good traction with optimized pattern design and rubber technology

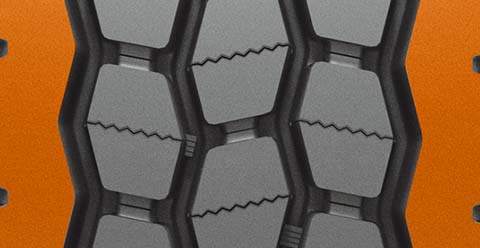

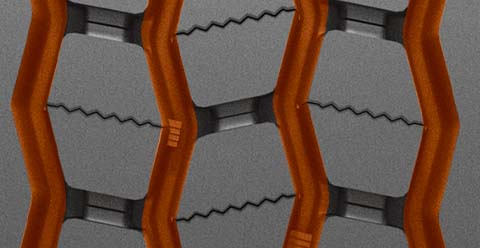

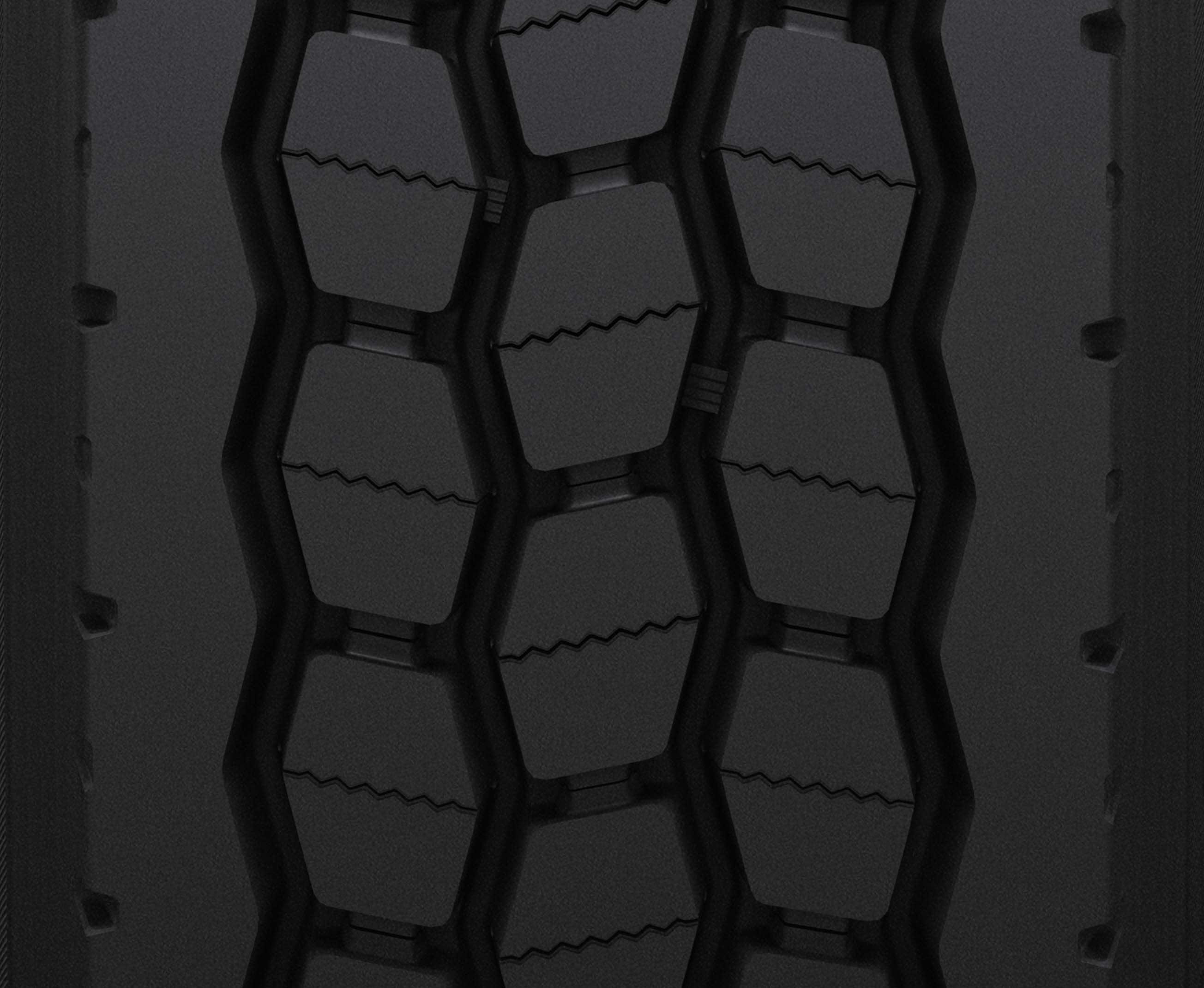

Zigzag Groove

Main 4 zigzag groove provides good traction performance.

Closed shoulder

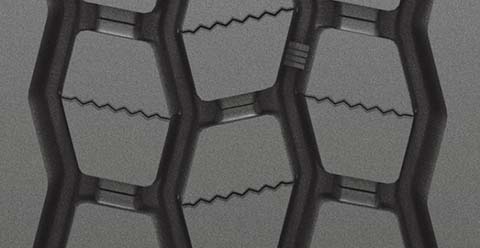

Closed shoulder delivers smooth wear, fuel efficiency and reinforced stability.

Advanced rubber technology

Advanced rubber technology improves fuel efficiency and mileage.

High mileage, fuel efficiency and good traction with optimized pattern design and rubber technology

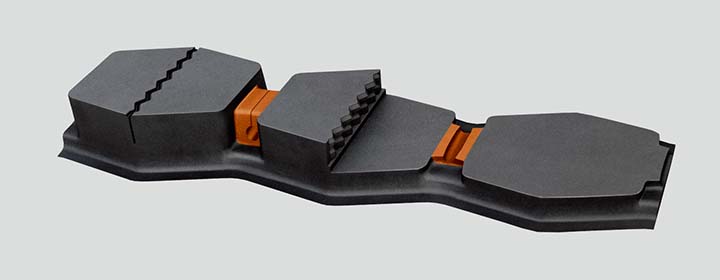

Heel & toe stopper
and 3-Dimensional Sipe technology
with excellent traction

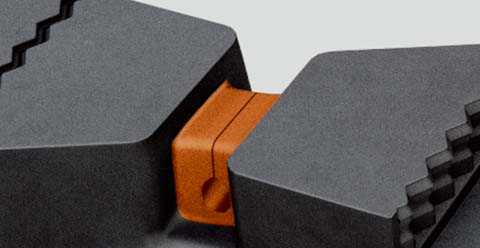

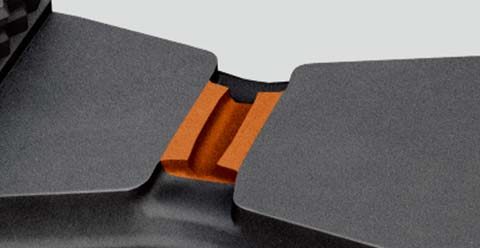

Heel &Toe stopper

Heel & toe stopper in lateral groove results in self-regenerating sipe which keeps excellent traction performance until the end of wear.

Initial stage of use Heel & toe stopper in lateral groove strengthens rigidity of tread block to reinforce traction and stability while suppressing irregular wear.

Mid/latter stage of use hidden groove in lateral groove strengthens traction performance.

3-Dimensional Sipe

Delivers excellent mileage and traction performance with reduced irregular wear which enhances fuel efficiency.

Test Result

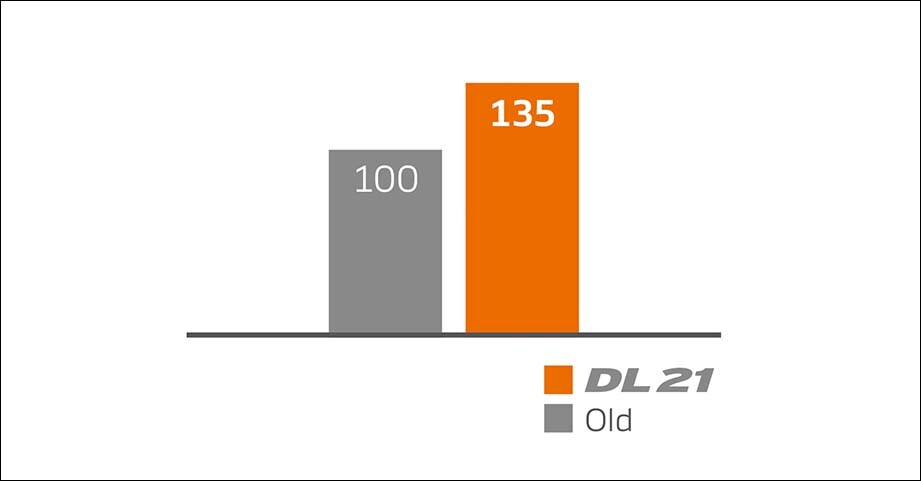

Mileage

Mileage improved 35% compared to its predecessor.

Rolling Resistance

Rolling Resistance is 11% better compared to its predecessor.

e3maxal21_video_thumbnail

  • Spec

    • 22.5”
    • 24.5”
    • 11R22.5
      • Material Code 3003179
      • TT/TL L
      • Ply Rating 14
      • Measuring Rim 8.25X22.5
      • Section Width(inch) 11.4
      • Tread Width(inch) 9.1
      • Tread Depth(32nds) 30
      • Static Loaded Radius(inch) 19.6
      • Overall Diameter(inch) 42.2
      • Tire Weight(lbs.) 134
      • M+S Y
      • 3PMSF N
      • Origin Korea
    • 11R22.5
      • Material Code 3003180
      • TT/TL L
      • Ply Rating 16
      • Measuring Rim 8.25X22.5
      • Section Width(inch) 11.4
      • Tread Width(inch) 9.1
      • Tread Depth(32nds) 30
      • Static Loaded Radius(inch) 19.7
      • Overall Diameter(inch) 42.2
      • Tire Weight(lbs.) 134
      • M+S Y
      • 3PMSF N
      • Origin Korea
    • 11R24.5
      • Material Code 3003435
      • TT/TL L
      • Ply Rating 14
      • Measuring Rim 8.25X24.5
      • Section Width(inch) 11.3
      • Tread Width(inch) 9.1
      • Tread Depth(32nds) 30
      • Static Loaded Radius(inch) 20.6
      • Overall Diameter(inch) 44.3
      • Tire Weight(lbs.) 141
      • M+S Y
      • 3PMSF N
      • Origin China
    • 11R24.5
      • Material Code 3003436
      • TT/TL L
      • Ply Rating 16
      • Measuring Rim 8.25X24.5
      • Section Width(inch) 11.3
      • Tread Width(inch) 9.1
      • Tread Depth(32nds) 30
      • Static Loaded Radius(inch) 20.6
      • Overall Diameter(inch) 44.3
      • Tire Weight(lbs.) 141
      • M+S Y
      • 3PMSF N
      • Origin China
    • 285/75R24.5
      • Material Code 3003437
      • TT/TL L
      • Ply Rating 14
      • Measuring Rim 8.25X24.5
      • Section Width(inch) 11.0
      • Tread Width(inch) 9.3
      • Tread Depth(32nds) 30
      • Static Loaded Radius(inch) 19.8
      • Overall Diameter(inch) 42.2
      • Tire Weight(lbs.) 131
      • M+S Y
      • 3PMSF N
      • Origin China
    • 295/75R22.5
      • Material Code 3002432
      • TT/TL L
      • Ply Rating 14
      • Measuring Rim 9.0×22.5
      • Section Width(inch) 11.8
      • Tread Width(inch) 9.1
      • Tread Depth(32nds) 30
      • Static Loaded Radius(inch) 19.0
      • Overall Diameter(inch) 40.4
      • Tire Weight(lbs.) 128
      • M+S Y
      • 3PMSF N
      • Origin Korea
